Description

Create a project called GraphAlgos with the required classes.

This assignment is part of the sequence on Graphs and Graph algorithms. A Graph is a collection of Vertices connected by Edges. It is a generalization of the Tree data structure from the previous assignments.

The focus is on the following algorithms and data structures:

Graph
Breadth-First Search
Depth-First Search
Dijkstra's Single-Source Shortest Path

Visualization resources

Here is pseudocode for the various algorithms:

Graph Algorithms

Here is a useful visualization resource:

BFS Visualization | DFS Visualization | Dijkstra Visualization
at the top-left there are three radio buttons that display the graph as:
- picture / diagram
- adjacency list - for each vertex only the neighbors are listed
- adjacency matrix - a full table for all pairs of vertices
- this assignment will use adjacency-list representation

JUnit

Put the test cases in class GraphAlgosTest. The JUnit testing will be different, since the methods will only print to the screen.

This means that there won't be assertEquals. Instead each @Test method will look like a mini-main method and you will inspect the console to see if the output is correct.

[ To test individual components you can comment //@Test ]

Here is an example:

@Test
public void test_bfs()
{
    Graph graph = new Graph("undirected.txt");

    String[] labelsList = { "a", ... };

    for ( ... ) {
        System.out.println("Source: ?");
        GraphAlgos.bfs(graph, ?);
    }
}

@Test
public void test_dijkstra()
{
    Graph graph = new Graph("directed.txt");

    String[] labelsList = { "a", ... };

    for ( ... ) {
        System.out.println("Source: ?");
        GraphAlgos.dijkstra(graph, ?);
    }
}

@Test
public void test_dfs()
{
    Graph graph = new Graph("directed.txt");

    String[] labelsList = { "a", ... };

    for ( ... ) {
        System.out.println("Source: ?");
        GraphAlgos.dfs(graph, ?);
    }
}

Vertex Representation

A vertex in the graph will represent the source or target of an edge. It will also store information that is needed for bookkeeping in the various algorithms. These could be left as default (i.e. non-private) as in the previous Node classes:

Each vertex will have the following data members:

the (string) label of the vertex in the graph
the distance value for this vertex during the traversal (for BFS and DFS this is just the level of the vertex in the traversal, which is one greater than that of its parent/predecessor); see the Double API for useful constants
the (vertex) parent/predecessor during the traversal (i.e. the vertex that inserted this vertex in the queue or last updated the distance value)
the mark field that indicates whether this vertex has entered the processing pipeline

Each vertex will have the following constructor and method:

Vertex(String theLabel) - creates a blank vertex with the given text and integer labels
toString() - returns a string representation of this vertex in the following format:
```
MyLabel:MyDist:MyParentLabel    i.e.    Hanover:15:NewOxford
```
this will be used in BFS and DFS for printing information during the traversal

Edge Representation

An Edge is described by its source and target vertices, and by its weight.

The interface for the Edge class is:

Egde(Vertex theSource, Vertex theTarget, double theWeight)
Vertex getSource()
Vertex getTarget()
double getWeight()

Graph Representation

The Graph should use the adjacency list representation based on a HashMap with (key,value)=(?,?).

The graph data members:

edge map - associates a vertex label with a list of edges
vertex map - associates a vertex label with a vertex
(the list of vertices will be available through the values of the edge map)

Here is the required interface for the Graph class:

Graph(String filename)

Reads a graph from the file with the given filename (see Scanner API).

Make sure to use the appropriate constructor to open the file. If Eclipse does not suggest adding try/catch, you are using the wrong Scanner constructor.

Methods .next() and .nextDouble() will read a single string and a single double, respectively. Method hasNext() will determine when to stop.

The files are formatted as follows:

source   target   weight

Test files are available here - save them in the main project folder (next to src/, bin/):

directed.txt - small weighted, directed graph
undirected.txt - small weighted, undirected graph
tube.txt - the London subway

Graph()

This constructor is not required, but you might use it initially if you are not sure whether you can read from a file.

This is just a sequence of addEgde calls for each line in the file you want to test.

public Graph()
{
    // any intialization

    // for BFS load "undirected.txt"
    //    addEdge("a", "b", 2);
    //    addEdge("a", "f", 7);
    //    addEdge("a", "g", 3);
    //    addEdge("a", "b", 2);
    ...

    USE ONLY ONE OR THE OTHER

    // for Dijkstra/DFS load "directed.txt"
    //    addEdge("a", "b", 4);
    //    addEdge("a", "f", 2);
    //    addEdge("b", "c", 3);
    ....
}

void addEdge(String sourceLabel, String targetLabel, double weight)

Adds an edge with the given weight from the vertex with the given source label to the vertex with the given target label.

Make sure duplicate vertices are not created. In other words, if called multiple times with sourceLabel or targetLabel "Gettysburg" it should always use the same Vertex object for "Gettysburg".

Vertex getVertex(String label)

Returns a Vertex object for the given label.

It should ensure that vertices are constructed/setup properly.

List<Edge> getAdjacent(Vertex source)

Returns an unmodifiable list of the edges that have the given vertex as their source.

[ Initially ignore the unmodifiable part. Later see the relevant method in the Collections API. ]

Collection<Vertex> getVertices()

Returns an unmodifiable collection of the vertices in the graph.

[ Initially ignore the unmodifiable part. Later see the relevant method in the Collections API. ]

Graph Traversal (BFS, DFS)

Create class GraphAlgos and implement the Breadth-First Search and Depth-First Search graph traversal algorithms by adding the following methods:

static void __method__(Graph graph)

A useful helper method...

static void bfs(Graph graph, String sourceLabel)

Performs Breadth-First Search (pseudocode) on the given graph starting at the given source vertex. This is essentially Level Order with vertex marking; see Figure 4.3 in [ALG].

The vertices are displayed on one line separated by a space in the order they are finished in the format:

a:0:* b:1:a f:1:a g:1:a c:2:b e:2:f i:2:f h:2:g d:3:c

BFS results on undirected.txt for each vertex as source

the label of the vertex
the distance to the vertex from the given source in breadth-first order
the label of parent vertex, i.e. the one that inserted this vertex in the Queue

To keep track of the edge distance, make the necessary changes to the pseudocode by using the distance field.

static void dfs(Graph graph, String sourceLabel)

Performs Depth-First Search on the given graph starting at the given source vertex. See Figures 3.5 and 3.3 in [ALG].

This method simply calls the next method after carrying out any preliminary steps (if necessary).

The vertices are displayed on one line separated by a space in the order they are finished in the format:

a:0:* b:1:a c:2:b d:3:c e:4:d f:1:a

DFS results on directed.txt for each vertex as source

See BFS for the meaning of the printed components.

static void dfs(Graph graph, Vertex curr)

Uses recursion to perform Depth First Search on the given graph starting at the given vertex curr. See Figures 3.5 and 3.3 in [ALG].

Depth-First Search is a generalization of the Preorder Traversal of BSTree: in each case first "process" the circle and then "process" all arrows for that circle.

The major difference between "peorder traversal" for BSTree and Graph is that in the case of Graph the vertices/nodes need to be marked and the other bookkeeping fields need to be updated (marking is needed to ignore traversing a vertex again after it has been traversed/marked by someone else).

For simplicity, "processing vertex" for Graph will simply print the string representation of the vertex.

Dijkstra's Single-Source Shortest Path

Implement Dijkstra's algorithm for computing the shortest paths from all vertices in a graph to a given source vertex by adding the methods below to the class GraphAlgos.

static void dijkstra(Graph graph, String sourceLabel)

Computes the shortest paths from the given source vertex to all the other vertices in the given graph using Dijkstra's algorithm (pseudocode).

You will need to create VertexComparator.

As soon as a vertex is finished:

at first simply display the string representation of that vertex to check that the parent and distance field are correct
later change it to display the shortest path forward and backward in the following format (see methods printPath and printPathRec):
```
A --4--> C --6--> G --2--> D --5--> F
F <--5-- D <--2-- G <--6-- C <--4-- A (total length 17)
...
```
Dijkstra results on directed.txt with c as source

Note: Simply changing the distance field of a vertex will not automatically reconfigure the PQ.

static void printPathLoop(Vertex startVertex, Vertex destVertex)

Uses a loop to print the path (in reverse) from the given destination vertex to the given starting vertex.

[ During the execution of Dijkstra's Algorithm the source will always be given as the starting vertex when this method is called. ]

The path is printed in the following format:

F <--5-- D <--2-- G <--6-- C <--4-- A (total length 17)

Note: A is the original source and F is the destination, and the path is printed in reverse (this makes the problem simpler).

Note: The individual numbers are edge lengths, not cumulative distances.

This method will be tested indirectly by testing Dijkstra's algorithm.

static void printPathRec(Vertex startVertex, Vertex destVertex)

Same as method printPath but uses recursion (does not include the total length). Unlike the previous method, this one shows the path from the startVertex to the given destVertex, i.e. not in reverse.

A --4--> C --6--> G --2--> D --5--> F

Note: A is the source and F is the destination, and the path is printed correctly. This makes the problem harder (but total distance is not printed).

Note: The individual numbers are edge lengths, not cumulative distances.

This method will be tested indirectly by testing Dijkstra's algorithm.

Executable JAR

This section is similar to section Executable JAR in Assignment 7. See the instructions there on creating and running executable jar.

Add main method to class GraphAlgos:

Intially in main run the various algorithms with hardcoded input files and source vertices
In the final version change main to use its command-line arguments from the String[] parameter:
- first cell is the algorithm name
- second cell is the file to use
- third cell is the start vertex

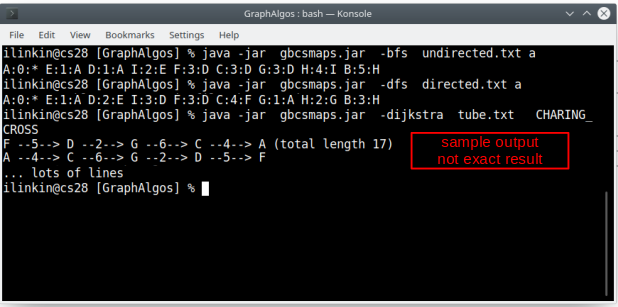

The program can now be run in the terminal as follows:

cd   the/full/path/to/Desktop/cs216/hw/GraphAlgos/

[if just java does not work replace with ../../software.tmp/java/bin/java]

java  -jar  gbcsmaps.jar  -bfs  undirected.txt  c

java  -jar  gbcsmaps.jar  -dfs  directed.txt    d

java  -jar  gbcsmaps.jar  -dijkstra  tube.txt   CHARING_CROSS
