• last digit S is 1, 2, 3, 4 and represents the suit:

  1=♣, 2=♦, 3=♥, 4=♠

• leading digits R or RR are 1, 2, 3, ..., 13 and represent the rank:

  1=aces, 2=twos, ..., 10=tens, 11=jacks, 12=queens, 13=kings

• see the table for the names of the card images
  note that card0.png is the image for the back face

• 131 is king of ♣, i.e. rank 13 and suit 1
• 24 is two of ♠, i.e. rank 2 and suit 4
• 102 is ten of ♦, i.e. rank 10 and suit 2

• click the Add button

• should see a tiny box in which to type the name of the class

• if you see a big box with lots of buttons, hit Cancel and try again

• if you create class Balloon it is good to check that file Balloon.java exists in folder:

  cs111/hw/OOPBlackJackApp/src/cs1/OOPBlackJackApp

• if you see folder named Balloon/ or Balloon.java/, delete it and start again

• rank -- the numeric rank of the card 1..13

• suit -- the numeric suit of the card 1..4

• points -- the point value of the card; Aces are worth 1 point, Twos are worth 2 points, ..., Tens are worth 10 points, and Jacks, Queens, Kings are worth only 10 points

• filename -- the name of the file with the card image

• Constructor( initNumber, ? ) -- creates a card with the given "full number", i.e. 132 and sets all data members to correct values

• getPoints( ? ) -- returns the card points

• getWidth( ? ) -- returns the width of the card image -- this is fixed to 71 pixels

• getHeight( ? ) -- returns the height of the card image -- this is fixed to 96 pixels

• draw( x, y, ? ) -- draws the image of the card centered at the given (x, y) coordinates

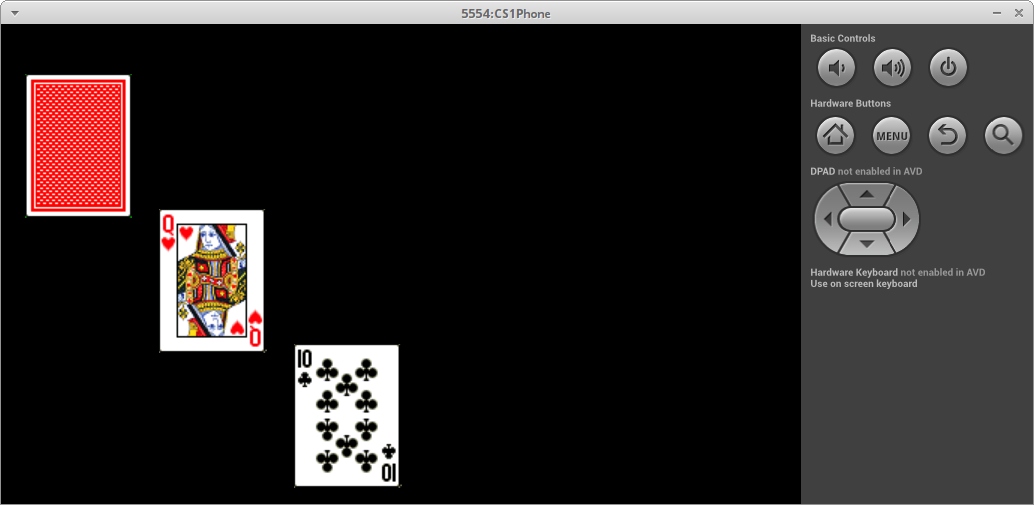

  card1.draw( 50, 80, ? ); // assuming you created card 0 card2.draw( 140, 170, ? ); // assuming you created card 123 card3.draw( 230, 260, ? ); // assuming you created card 101

• getRank( ? )
  • returns the card rank as one of the words "Ace","Two",...,"King" (not the numeric rank)

  • store the ranks in a primitive array and return the corresponding word (see the palette variable in method fillAllRegions in Assignment 10)

  • initially could simply return "UnknownRank"

• getSuit( ? )
  • returns the card suit as one of the words "Clubs","Diamonds","Hearts","Spades" (not the numeric suit)

  • use Java switch statement (initially could use if statements)

  • initially could simply return "UnknownSuit"

• getName( ? )
  • returns the name of the card as a string in the following format: "Ace of Spades"

  • initially could simply return "UnknownName"

In Card class main method:

        Card card1 = new Card( 84, ? );

        System.out.println( "card rank : " + card1.getRank( ? ) );      // Eight
        System.out.println( "card rank : " + card1.getSuit( ? ) );      // Spades
        System.out.println( "card rank : " + card1.getName( ? ) );      // Eight of Spades
        System.out.println( "card value: " + card1.getPoints( ? ) );    // 8
        System.out.println( "card width : " + card1.getWidth( ? ) );    // 71
        System.out.println( "card height: " + card1.getHeight( ? ) );   // 96

        // create a few more cards and test all non-drawing methods

        Card card1 = new Card( 84, ? );

        card1.draw( 80, 100, ? );

        // create a few more cards and draw at various places

• name -- the name of the player

• points -- the number of points the player has so far

• active -- the status of the player, i.e. still playing or not

• lastCard -- the last card collected by the player (initially, the player only has card number 0, which is the blank card)

• Constructor( initName, ? ) -- creates an active player with the given name, no points, and the card 0

• getName( ? ) -- returns the player name

• getPoints( ? ) -- returns the player points so far

• isActive( ? ) -- returns whether the player is active or not

• stopPlaying( ? ) -- deactivates the player, so from now on it is no longer playing

• collectCard( card, ? ) -- gives the player a card and ... ...

• draw( x, y, ? ) -- draws the player centered at the given (x, y) coordinates by drawing the last card collected by the player along with the player points in red/blue if inactive/active inside a white square with black border; the player name is drawn directly on the bottom edge of the card

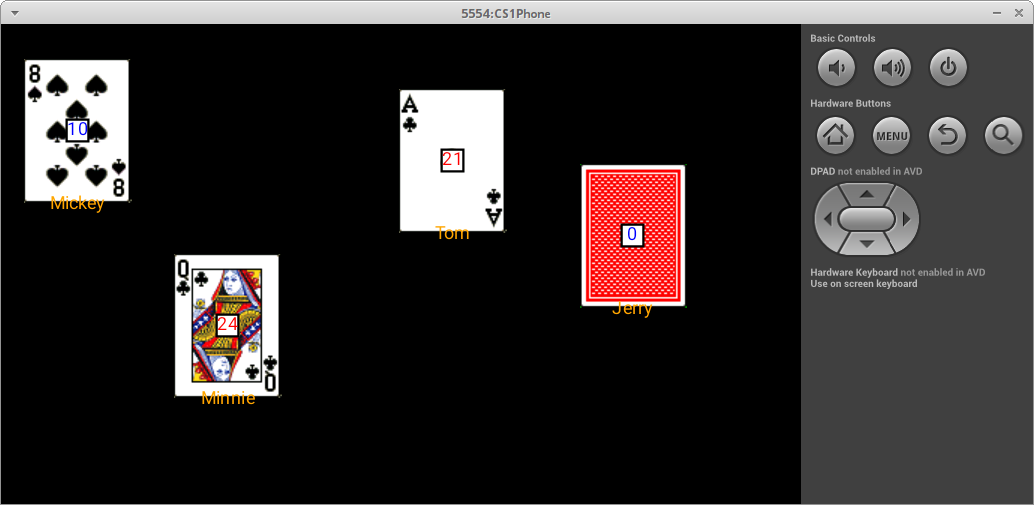

  mickey.draw( 50, 70, ? ); // assuming Mickey's last card was 8 of clubs and it increased his points to 10 minnie.draw( 150, 200, ? ); // assuming Minnie's last card was Queen of Spades and it increased her points to 24 tom.draw( 300, 90, ? ); // assuming Tom's last card was Ace of Spades and it increased his points to 21 jerry.draw( 420, 140, ? ); // assuming Jerry's last card was Ace of Spades and it increased his points to 21

In Player class main method:

        Player mickey = new Player( "Mickey", ? );

	System.out.println( "player name: " + mickey.getName( ? ) );      // Mickey
        System.out.println( "player points: " + mickey.getPoints( ? ) );  // 0
        System.out.println( "player active: " + mickey.isActive( ? ) );   // true

	Card card1 = new Card( 64, ? );

	mickey.collectCard( card1, ? );

        // display player's detail again to see if points changed

        // create a few more cards give them to the player and
	// display the player's detail

        // deactivate the player (tell player to stop) and display
	// player's details to make sure not active

        // create another player, give some of the previous cards to
	// new player and display the player's detail as above

        Player mickey = new Player( "Mickey", ? );

        mickey.draw( 80, 100, ? );

	Card card1 = new Card( 113, ? );

        mickey.collectCard( card1, ? );

        mickey.draw( 200, 100, ? );

        // give player a few more cards and redraw to see if updated correctly

• cardsList -- the cards in this deck (use ArrayList, see class notes)

• Constructor( ) -- creates a deck of 52 cards; use two nested loops to generate the card numbers (and thus the cards themselves)

• deal( ? ) -- returns the last card in the deck; ensures that card is no longer in the deck

• shuffle( ? ) -- shuffles the cards in the deck by picking two random indices and swapping the corresponding cards; this is repeated twice as many times as the number of cards in the deck

• draw( y, ? ) -- draws the cards in the deck at the given y level such that the left-most card touches the left edge of the canvas/phone and the centers of the cards are exactly 10 pixels apart

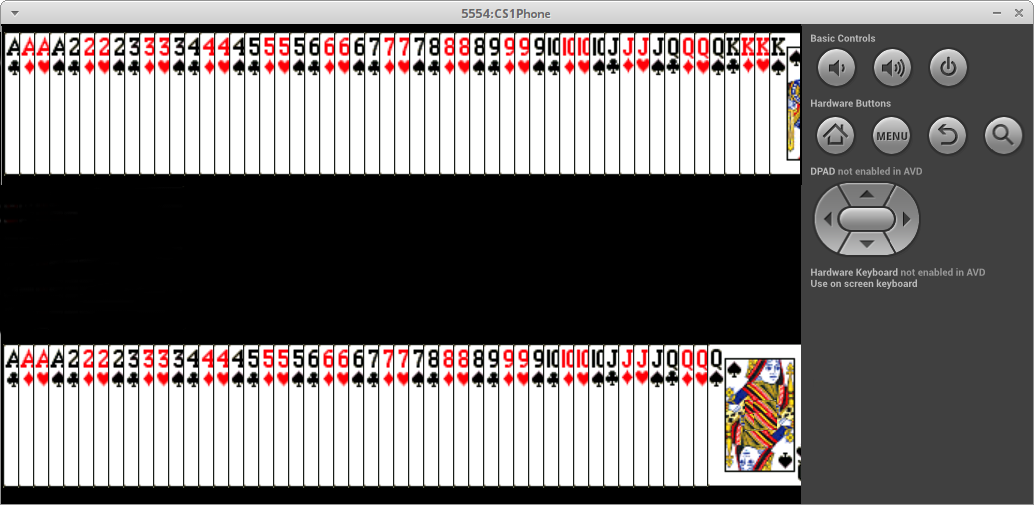

  deck.draw( 55, ? ); // assuming no cards dealt from deck deck.draw( 250, ? ); // assuming 4 cards (the Kings) dealt

In Deck class main method:

        Deck deck = new Deck();

	Card card = deck.deal( ? );

        // display card details (points, rank, etc.) -- should be King of Spades

        // deal three more cards and display their details -- should be the other Kings

        // deal one more card and display its details -- should be the Queen of Spades

        Deck deck = new Deck();

        deck.draw( 55, ? );

        // deal four cards from the deck and redraw it
	// somewhere below -- should be missing the Kings

        // shuffle the deck and redraw it

• playersList -- the players in the casino (use ArrayList, see class notes)

• Constructor( ) -- creates a casino with no players

• add( player, ? ) -- adds the given player to the list of players in the casino

• hasActive( ? ) -- returns whether there is still (at least one) active player in the casino

• drawPlayers( ? ) -- draws the players in the casino such that the tops of the cards touch the top of the phone and the players are evenly spaced horizontally (the spacing will depend on the number of players in the casino); the height of a card can be found by creating the blank card and interacting with it

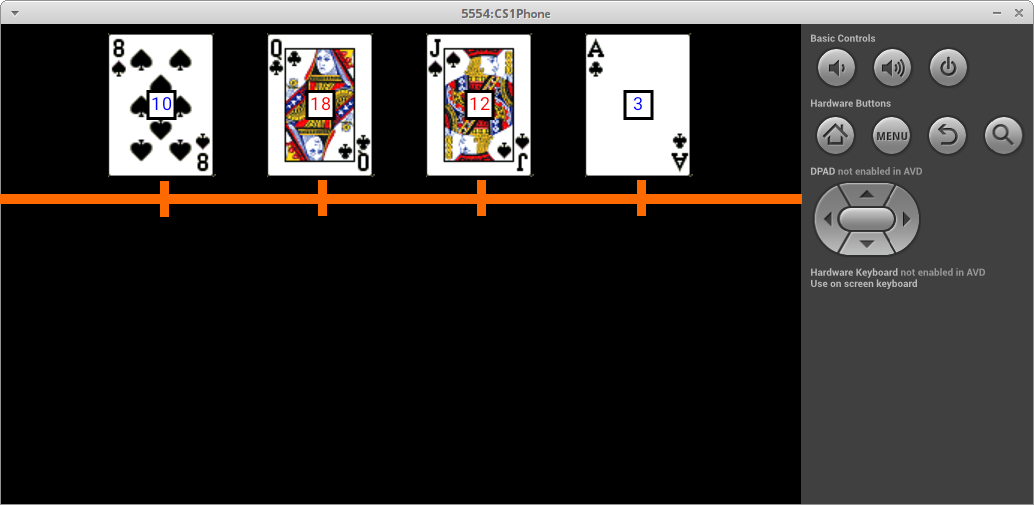

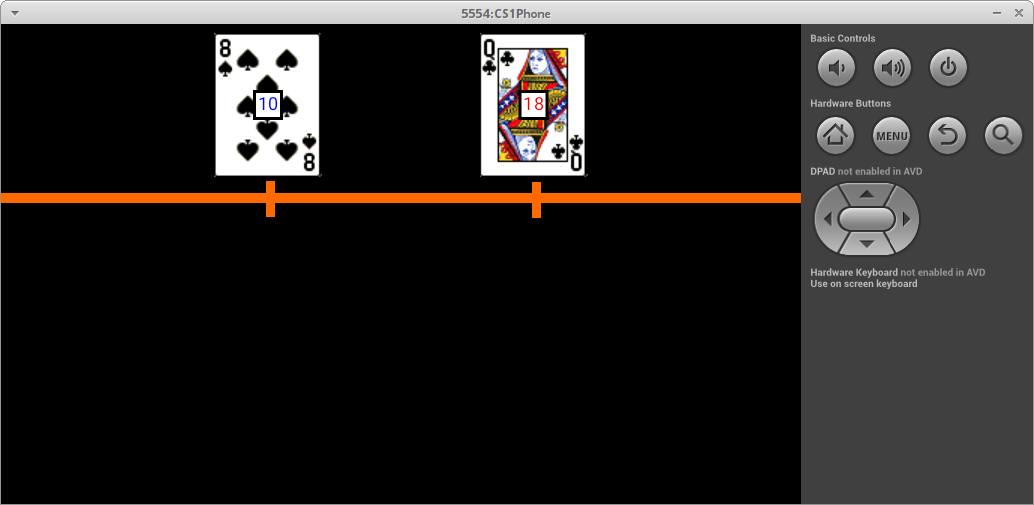

  casino.drawPlayers( ? ); // left image assumes only 2 players in casino // right image assumes 4 players in casino

• playGame( ) -- runs the game with the players in the casino and with a new deck of cards (make sure to shuffle the deck); the game scene displays the players evenly spaced and touching the top of phone/canvas, with the deck touching the left edge of phone/canvas centered vertically:

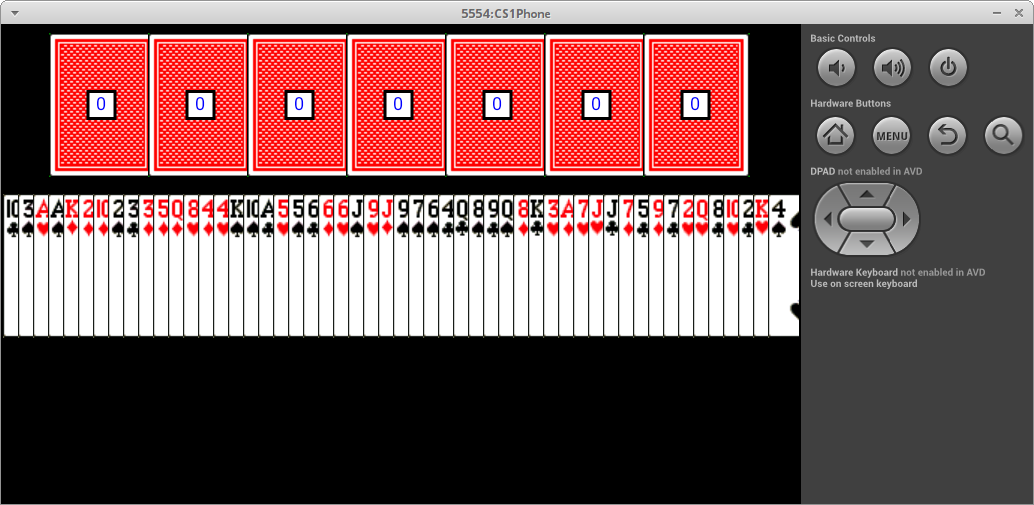

  waiting for first player		part-way through game

  Here is a partial structure for this method:

  proc playGame()
  {
      create a deck and shuffle it

      keep track of index of current player -- cycle among 0..n-1 (inclusive)

      as long as there are active players:
      {
           //...........................................................
           //    the rest of the code goes here:
           //
           //    draw scene, wait for input, update player details
           //          single tap means player wants a card,
           //          double-tap means player wants to stop playing
           //
           //          [ only wait for input if player is active ]
           //...........................................................


           // move on to next player, but start at 0 if currently at last player
      }

      // ...
      // ...
  }


In OOPBlackJackApp class run method:

        // create an empty casino

        // create 4-5 players and add them to the casino

        // draw the players to see if method works correctly, then comment out

        // check if there are active players, then comment out

        // play the game (after the previous test cases pass)
